| COMPACT SERIES -55 to60 M3/Hr |
| Model |
SW - CP1056/ CT1060 |
| Type |
Compartment Bins |
| Capacity |
50-60 M3/Hr. |
|
| |
 |
| |
| The latest Compact Series Concrete Batching Plant is based on a robust ‘space frame’ design facilitating easy transportation. Available with a choice of cement storage options, four standard aggregate storage compartment bins, skip weighing system and integrated cabin. The Compact Series has already proven popular with many leading Readymix Concrete companies and civil engineering contractors in India. By providing an efficient, competitively priced and versatile unit that requires minimal groundwork and is easy to install. This optimum design will also satisfy today’s strict space planning and environmental regulations. Standard design features include generous service access, faster site relocation, high productivity and precision weighing technology. Option of Pan & Twin Shaft Mixers available on this model |
|
| |
| Specifications |
| Aggregate storage capacity / M3 |
50 |
| Number of aggregate storage compartments |
4 |
| Cement Storage capacity / tonnes |
50-300 |
| Aggregate storage facility |
Compartment Bins |
| Cement storage facility |
Remote silos |
| Mixer |
Pan (Standard) Twin Shaft (Optional) |
| Maximum aggregate scale rating - kg |
3000 |
| Maximum cement scale rating - kg |
700 |
| Control System |
Automatic |
| Output/M3 per hour |
50-60 |
| Plant designation |
Skid mounted |
|
|
| |
 |
| |

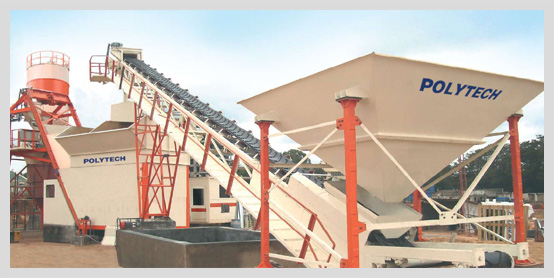

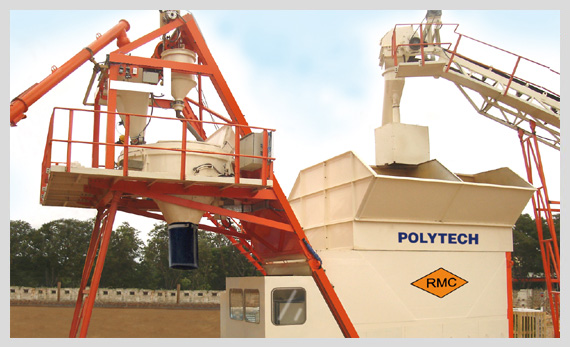

Plant installation at Mantri Project Site, Bangalore
Capacity: 60 M3/Hr.
B. L. Kashyap & Sons Ltd. |
|
|
|
|
| |
|
| |
|
|
| |
