| COMPACT SERIES-60M3/Hr to 90M3/Hr |
| Model |
BW - IT 1060/ 16780 |
| Type |
Compartment Bins |
| Capacity |
60~90 M3/Hr. |
|
| |
|
| |
The latest Compact Series Concrete Batching Plant is based on a robust ‘space frame’ design facilitating easy transportation. Available with a choice of cement storage options, four standard aggregate storage compartment bins, belt weighing system and integrated cabin. The Compact Series has already proven popular with many leading Readymix Concrete companies and civil engineering contractors in India. By providing an efficient, competitively priced and versatile unit that requires minimal groundwork and is easy to install. This optimum design will also satisfy today’s strict space planning and environmental regulations. Standard design features include generous service access, faster site relocation, high productivity and precision weighing technology. Option of small to medium size Twin Shaft Mixers available on this model.
REVOLVING CHUTE
Revolving Chute for aggregate charging conveyors are available in various capacities depending on the capacity of aggregate storage bins and the location of the ground hopper. |
|
| |
| Specifications |
| Aggregate storage capacity / M3 |
70 |
| Number of aggregate storage compartments |
4 |
| Cement Storage capacity / tonnes |
50-300 |
| Aggregate storage facility |
Compartment Bins |
| Cement storage facility |
Remote silos |
| Mixer |
Twin Shaft (Standard) Pan (Optional) |
| Maximum aggregate scale rating - kg |
4000 |
| Maximum cement scale rating - kg |
1000 |
| Control System |
Automatic |
| Output/M3 per hour |
60-90 |
| Plant designation |
Skid mounted |
|
|
| |
 |
| |

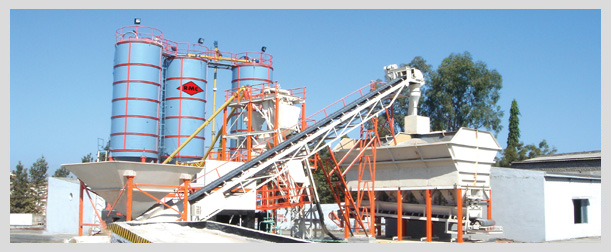

Plant installation at Jaipur
Capacity: 60 M3/Hr.
RMC India (P) Ltd. |
|
|
|
|
| |
|
| |
|
|
| |
