| Advance series 30 M3/Hr |
| Model |
Advance - IP0530 |
| Type |
Inline bins |
| Capacity |
30 M3/Hr. |
|
| |
 |
| |
Having seen the successful launch of Advance Series, the latest 30 M3/Hr.. output Advance Series Concrete Batching Plant shares most of its features with the Advance Series and is built on the same robust space frame design. The Advance Series – I offers customers a choice of cement storage options (silos and manual feeding), 4 standard aggregate storage bins and wet, dry or combination batching.
The necessity of a 30 M3/Hr.. output plant for captive project requirements and start up RMC’s having the features and portability of high end plant was strongly felt by the concrete industry to eliminate the shortcomings encountered in the workability of scraper plants. This demand saw the birth of a very innovative scaled down version of our high output Advance Series model and captured the imagination of end users where captive project plants were becoming a requirement. |
|
| |
| Specifications |
| Aggregate storage capacity / M3 |
50 |
| Number of aggregate storage compartments |
4 |
| Cement Storage capacity / tonnes |
Optional |
| Number of cement Storage compartments |
Optional |
| Aggregate storage facility |
Low level bins |
| Cement storage facility |
Remote silos |
| Mixer |
Pan |
| Maximum aggregate scale rating - kg |
2000 |
| Maximum cement scale rating - kg |
400 |
| Control System |
Automatic |
| Output/M3 per hour |
30 |
| Plant designation |
Skid mounted |
|
|
| |
 |
| |

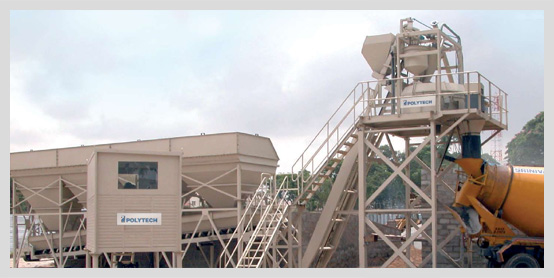

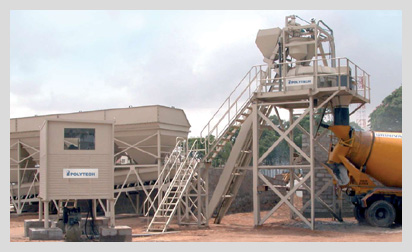

Plant installation at ISKCON project site, Bangalore
Capacity: 30 M3/Hr.
Srinivasa RMC, Bangalore |
|
|
|
|
| |
|
| |
|
|
| |
